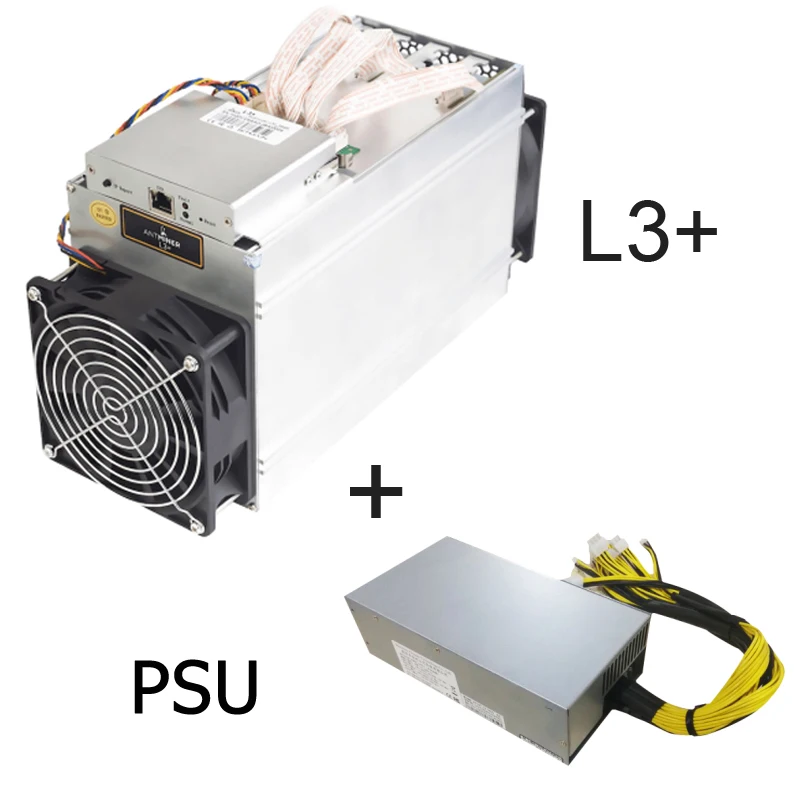

Bitmain Antminer L3+ 504mh/s With Power Supply PSU 504m new used LTC Litecoin miner mining
Products Description
| Product Name | Antminer L3+ |
| Algorithm | Scrypt |
| Hashrate | 504.00 MH/s |
| Power Consumption | 880W |
Bitmain Antminer L3+ miner with 504 MH/s hash rate at 800 W power consumption. Verge-Scrypt, DGB-Scrypt, Einsteinium, Litecoin, Florin, GameCredits, Dogecoin, Viacoin, and Myriad-Scrypt miner compatible with Scrypt hashing algorithm.
1. Hash Rate: 504MH/S
2. Power Consumption: 800W + 10%
3. Power Efficiency: 1.6J/MH + 10%
4. Rated Voltage: 11.60 ~13.00V
5. Chip quantity per unit: 288PCS, Board:4pcs
6. Dimensions: 352mm(L)*130mm(W)*187.5mm(H)
8. Operating Temperature: 0 °C to 40 °C
9. Network Connection: Ethernet
10. Noise:75dB
Antminer L3+ is a custom mining device for litecoin that uses the same hardware components and is based on the Scrypt algorithm for mining. Ant L3+ is an upgraded version of L3, which is superior in performance and competitiveness.

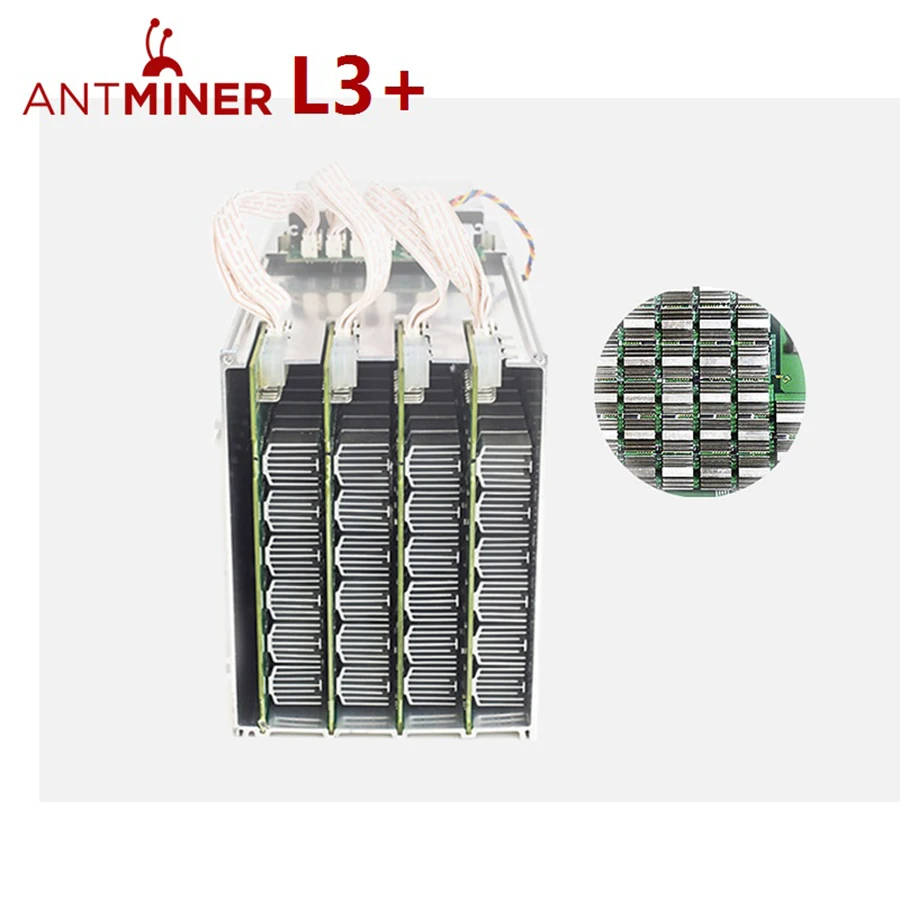

Antminer L3+ includes BM1485, one of the first Litecoin ASIC chips with faster hashing capabilities. The mining machine is equipped with 288 such ASIC chips, making it more efficient than other Litecoin mining machines on the market. Ant mining machine L3+ and Ant mining machine S9 have similarities, also have the same side. Thanks to its compact design and efficient cooling system, the mining machine can be used anywhere - in mines and residential areas.
The Antminer L3+ is equipped with the AM335x 1GHz ARM Cortex-A8 microprocessor, which is a control panel that ensures your mining blocks are submitted immediately. The equipment adopts high-grade aluminum shell, dust proof and heat proof, and the front and rear fans dissipate heat. Antminer L3+ uses a combination of convection and conduction to enhance cooling capacity. This cooling method helps to keep mining operations stable. Even at maximum capacity, L3+ does not emit more heat than the latest Terahash mining machine, which is an added advantage.
L3+ has a high quality aluminum radiator installed on each chip, a feature that brings heat absorption. The position of the two fans at the end of the tube allows the hot air to disperse immediately by introducing the cooler air at a faster rate. The endothermic process indicates that L3+ is designed to achieve maximum power while keeping the environment cool.
Antminer L3+ has an easy-to-use user interface (UI). From miner state to chip information, speed, and temperature, the UI is easy to process. You need to enter the wallet address to configure a mining pool for the device and start mining. There will also be a firmware update option in the future.
One of the criteria for obtaining miners is the hash rate. The maximum calculation force of ANT miner L3+ is 504Mh/s. It was nearly twice as fast as the previous model, the Antminer L3, at 255H/s.
If you are mining in residential areas, it is best to keep Antminer L3+ in a large, well-ventilated room. L3+ generates 70 to 80db of noise during mining. The noise level is between that of a vacuum cleaner and a food mixer.
